* Good Condition Includes Power Supply

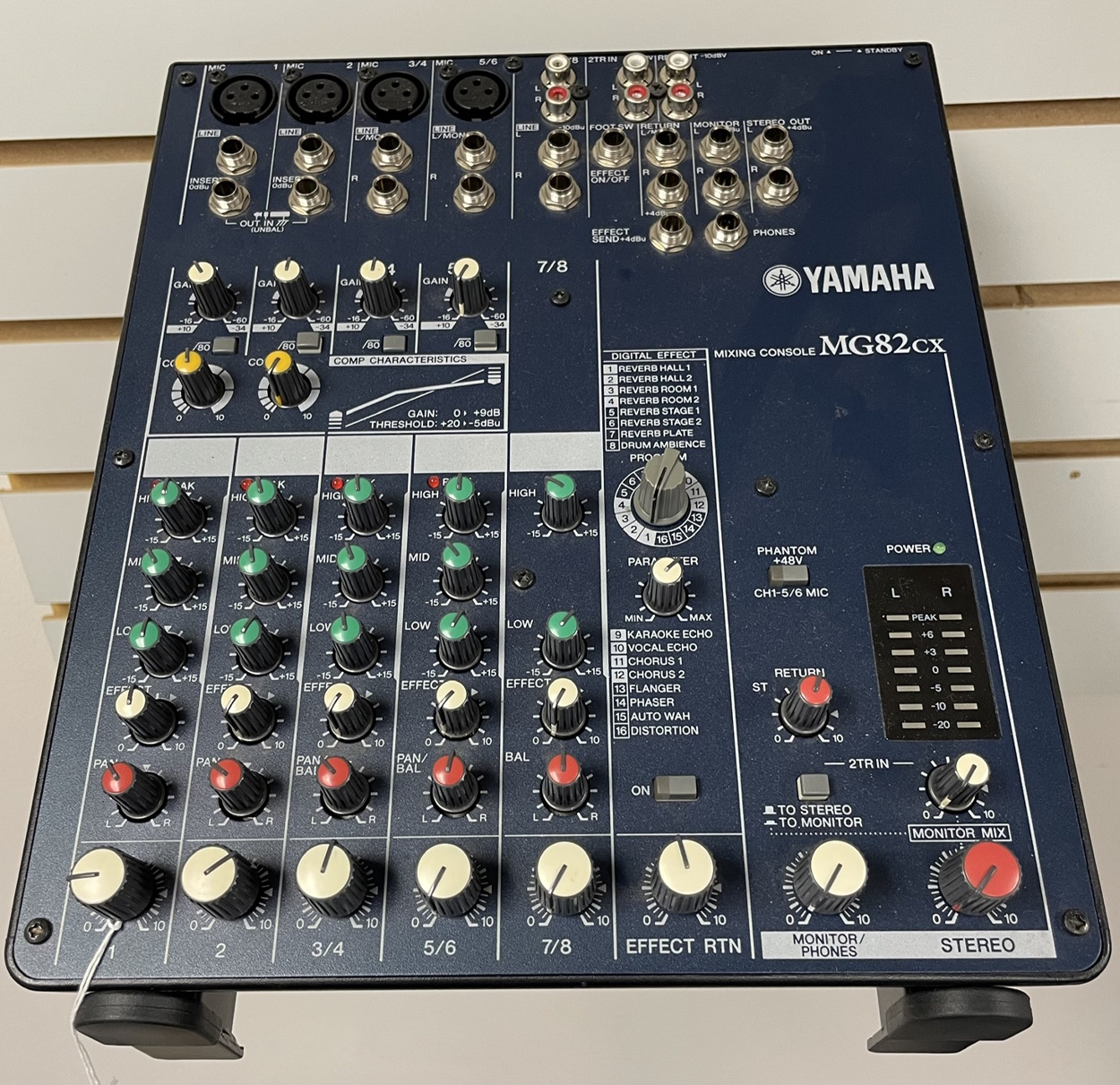

The Yamaha MG82cx mixer offers sonic quality that will satisfy the most critical listener, surprising flexibility and ease-of-use, and some advanced features you normally wouldn't find in this type of compact mixer. The MG82cx weighs only 3-1/2 lb. and is small enough to pop into your briefcase or shoulder bag and easily take with you anywhere. But the performance you'll get at the studio, club, outdoors, or anywhere you choose to use these fine mixers is far from lightweight.

MPN: MG82CX
UPC: 086792985077

8-input, 2-bus design
Built-in DSP for high quality effects
3-band EQ on inputs
One-knob compression on 2 channels
Microphone stand mountable (requires BMS-10A)
Frequency Response: STEREO OUT, EFFECT SEND (AUX SEND*), MONITOR OUT, REC OUT
GAIN: min (CH 1/5/6) 20Hz — 20 Hz Nominal output level @ 1kHz: -3.0 — 1.0 dB
Total Harmonic Distortion (THD + N) STEREO OUT, +14 dBu @ 20 Hz-20 kHz, Input GAIN Control at minimum : 0.1%
Hum & Noise:
CH INPUT 1,2 MIC, EIN (Equivalent Input Noise): Rs = 150 Ohms, GAIN: maximum (CH. 1, 2): -128 dBu
STEREO OUT, STEREO Master control at nominal level and all channel Level controls at minimum: -87 dBu
EFFECT SEND (AUX SEND), all CH. EFFECT (AUX) controls at minimal: 85 dBu
STEREO OUT, STEREO Master Control and one CH fader at nominal level (Ch1,2) : -64 dBu
STEREO OUT Residual Output Noise —100 dB
Crosstalk (1 kHz): Adjacent Input CH 1, 2: -70 dB; Input to Output STEREO L/R, CH 1-2, PAN: panned hard left or right: -70 dB
Phantom Voltage MIC: + 48V
Input HPF: CH 1-5/6, 80 Hz, 12 dB/oct
Input equalization CH 1-5/6 HIGH: 10 kHz (shelving), MID: 2.5 kHz (peaking), LOW: 100 Hz (shelving); CH 7/8, 9/10 HIGH: 10 kHz (shelving), LOW: 100 Hz (shelving)
PEAK Indicator: Red LED turns on when post EQ signal (either post MIC HA or post EQ signal for CH 3/4, 5/6) reaches -3 dB below clipping (+17 dBu).
Internal Digital Effect* : 16 PROGRAM, PARAMETER control, Foot Switch (Digital Effect On/Off)
LED Level Meter, Pre MONITOR Level, 2 x 7 points LED meter (PEAK, +6, +3, 0, -5, -10, -20 dB), PEAK lights if the signal level reaches 3 dB below the clipping level.
Power Supply Adaptor PA-10: AC 35 VCT, 0.62 A, Cable Length = 3.6 m
Power Consumption: 21 W
Dimensions (l x w x h): 15.4" x 14.2" x 5.3"
