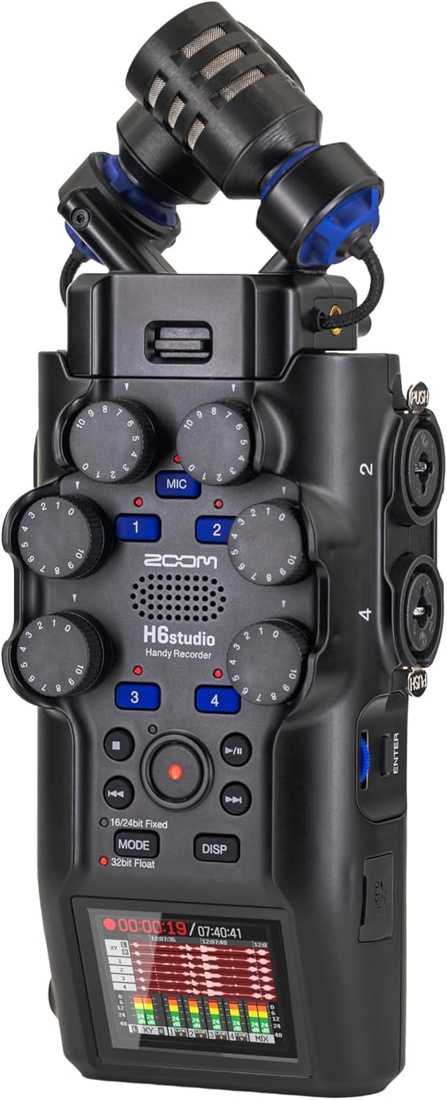

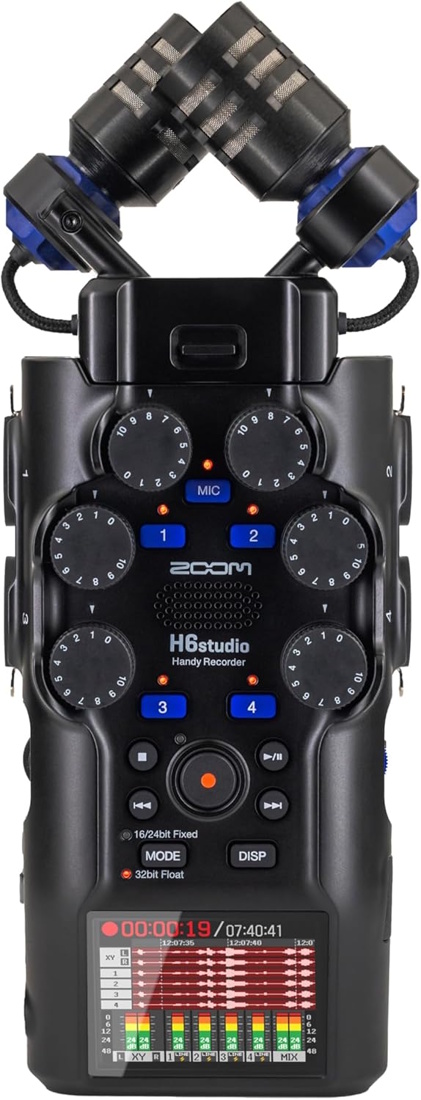

The H6studio, Zoom’s most advanced Handy Recorder yet, built on F-Series tech to capture clean, detailed audio wherever you find it. Its large-diaphragm 19.4 mm X/Y mics deliver a flat, musical response with 123 dB of dynamic range and can handle up to 140 dB SPL, while four studio-grade preamps (-127 dBu EIN) and dual A/D converters feed true 32-bit float recording for a massive 132 dB capture window.

You get the best of both worlds—32-bit float with dedicated gain knobs for no-clip confidence and a quick format switch when you prefer 16/24-bit—plus “look-ahead” limiters that catch peaks before they become problems. Record up to 8 tracks at once (six discrete plus a stereo mix) at 44.1–192 kHz, with RF shielding and shock-mounted XYH-5s capsules to keep interference and handling noise at bay.

Connectivity is pro-level: four locking XLR/TRS inputs with +48V and +4 dBu line-level support, a stereo mini jack, and the Capsule System 3.0*—now 32-bit float capable—for swapping to the right front-end (compatible with SSH-6e, EXH-6e, WLM-1, XYH-6e, sold separately). A clear display lets you view meters and waveforms while you monitor them via a 20 mW headphone out, and the H6studio doubles as a 6-in/2-out USB interface for Mac, Windows, iOS, and Android—stream live while backing up to microSD. Power it with four AA batteries for up to 15 hours, or run from USB/AC when the session runs long. *Capsule compatibility as listed.

MPN: ZH6S
UPC: 4515260030385

• Zoom’s most advanced Handy Recorder, built with F-Series technology

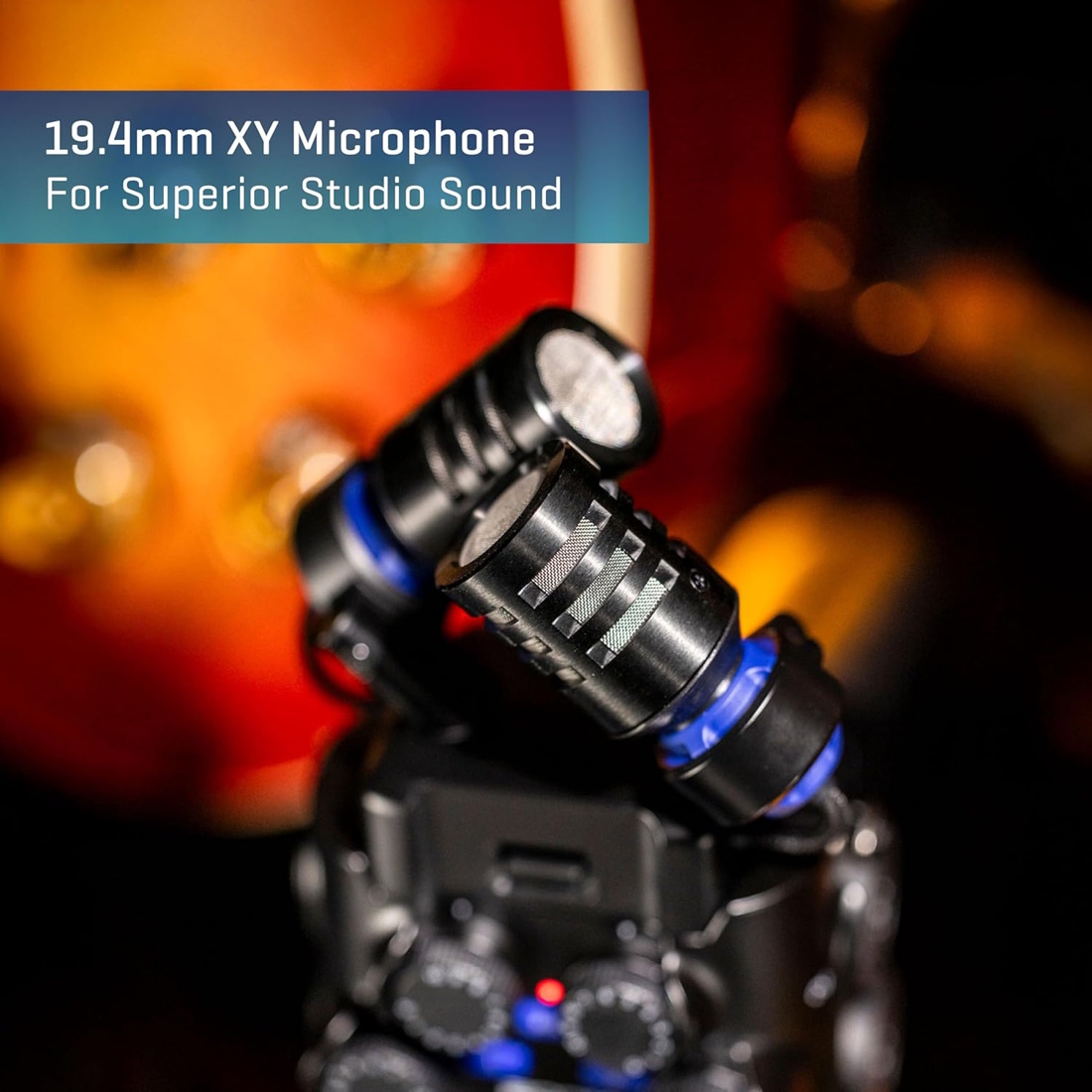

• Large-diaphragm 19.4 mm X/Y mics with 123 dB dynamic range and 140 dB SPL handling

• Four studio-grade preamps (-127 dBu EIN) with dual A/D converters for ultra-clean audio

• True 32-bit float recording with 132 dB capture window

• Dedicated gain knobs for precise control and no-clip confidence

• Quick format switch between 32-bit float and 16/24-bit modes

• “Look-ahead” limiters prevent distortion in any format

• Record up to 8 tracks at once: six individual tracks plus a stereo mix

• Sampling rates from 44.1 kHz up to 192 kHz

• RF shielding and shock-mounted XYH-5s capsule reduce interference and handling noise

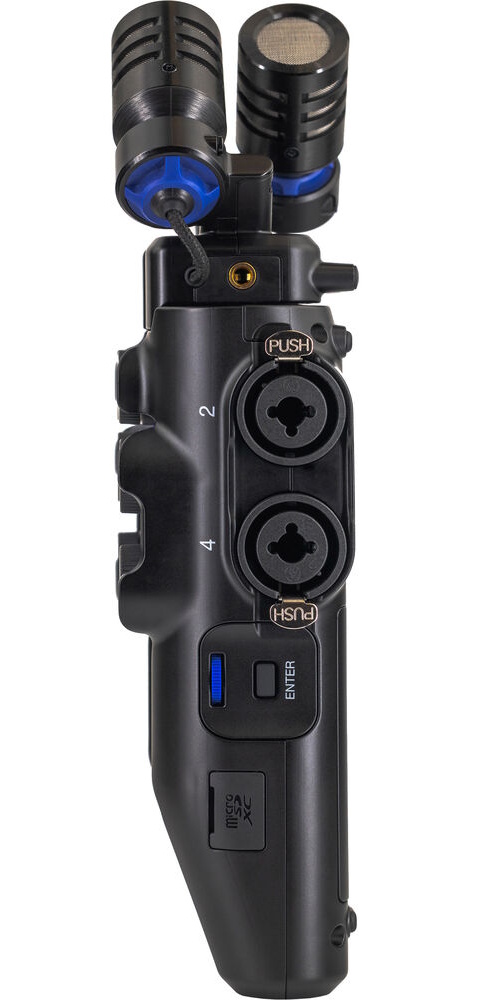

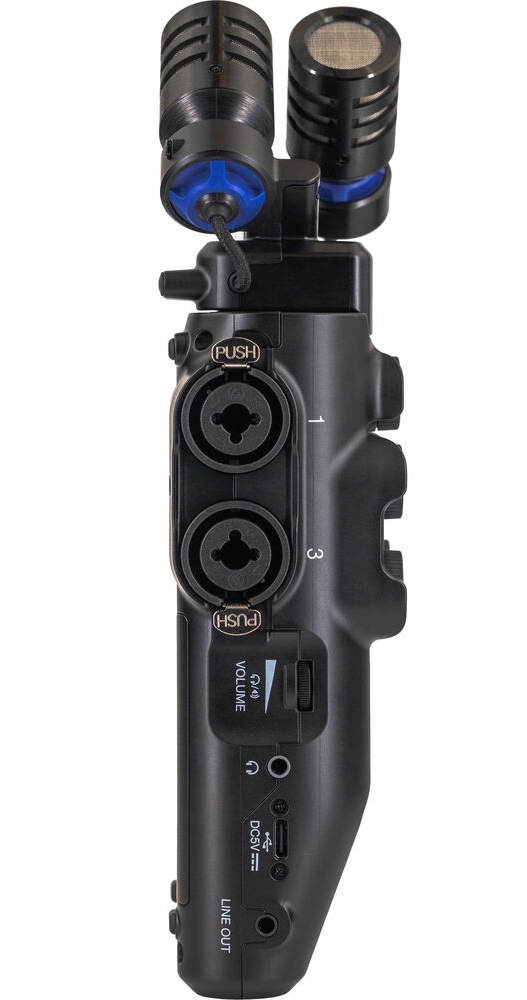

• Four locking XLR/TRS inputs with +48V phantom power and +4 dBu line-level support

• Stereo mini jack input for additional flexibility

• Capsule System 3.0* supports 32-bit float; compatible with SSH-6e, EXH-6e, WLM-1, XYH-6e

• Clear display with both level meter and waveform view options

• 20 mW headphone output for reliable monitoring in any environment

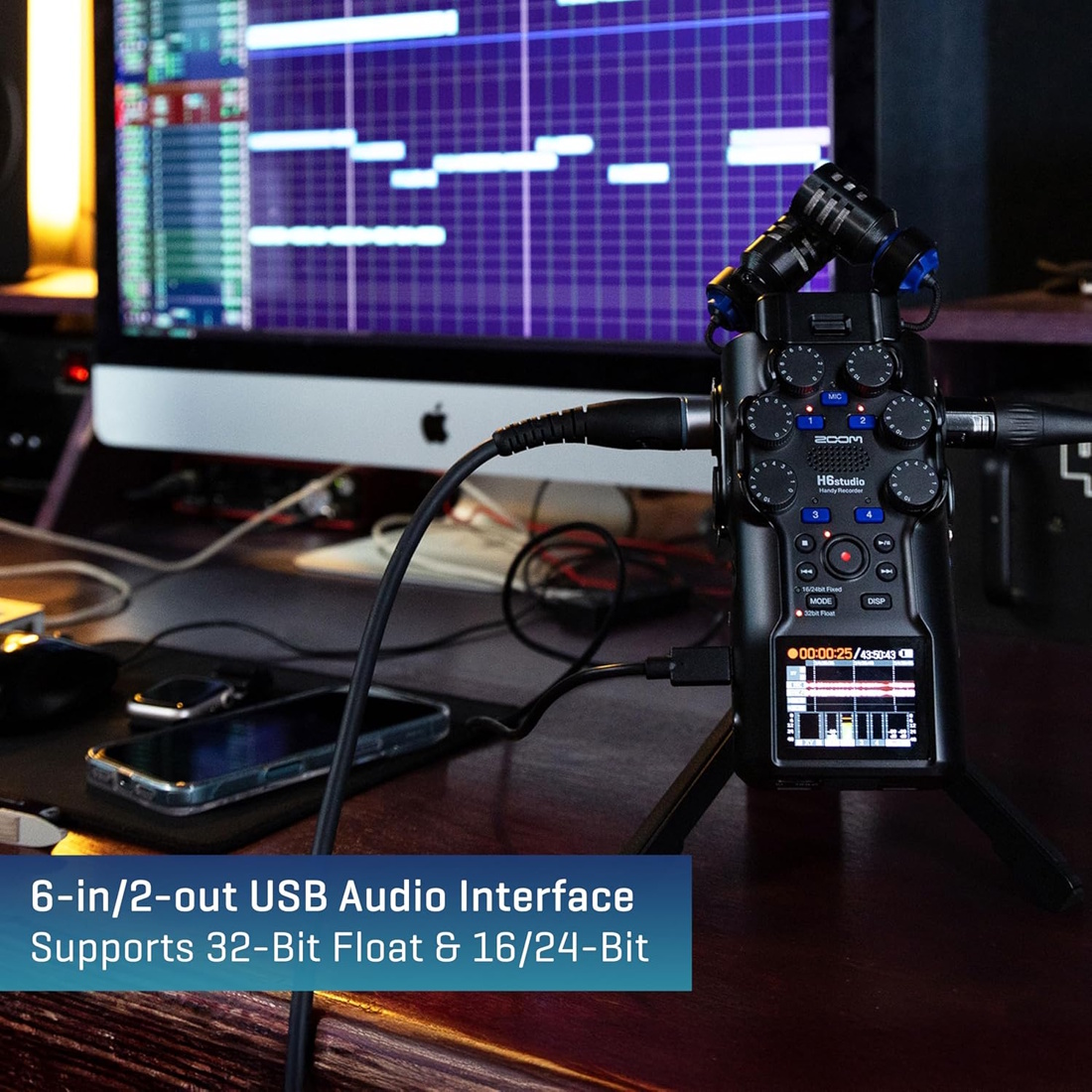

• Functions as a 6-in/2-out USB audio interface for Mac, Windows, iOS, and Android

• Stream live while simultaneously recording a backup to microSD

• Powered by 4 AA batteries for up to 15 hours, or via USB/AC for extended sessions

• Zoom H6studio Specifications
  Inputs
  Mic capsule: 1
  MIC/LINE (mono): 4
  Outputs
  LINE OUT: 1
  Headphone: 1
  Built-in speaker (mono): 1
  INPUTS
  XY mic (XYH-5s), 90º XY stereo format
  Pickup pattern: Unidirectional
  Sensitivity: –41 dB/Pa at 1 kHz
  Maximum sound pressure input: 140 dB SPL
  MIC/LINE IN (XYH-5s)
  Connector: 1 stereo mini jack
  Input gain: −∞ – +60 dB
  Input impedance: 2 kΩ or more
  Plug-in power: 2.5 V
  MIC/LINE (mono)
  Connectors: 4 XLR/TRS combo jacks (XLR 2 HOT, TRS TIP HOT
  Input gain: −∞ – +60 dB
  Input impedance
  MIC: 3 kΩ or more
  LINE: 3 kΩ or more
  Maximum input level
  MIC: +4 dBu
  LINE: +24 dBu
  Phantom power: +48 V
  Equivalent input noise: –127 dBu or less (IHF-A) at 150Ω input
  OUTPUTS
  LINE OUT
  Connector: 1 stereo mini jack
  Maximum output level: +1 dBu
  Output impedance: 110 Ω or less
  Headphone
  Connector: 1 stereo mini jack
  Maximum output level: 20 W + 20 W when 32 Ω load
  Output impedance: 10 Ω or less
  Built-in speaker
  Type: 20 mm x 30 mm elliptical dynamic speaker
  Effective maximum output: 250 mW
  RECORDER
  Maximum simultaneous recording tracks: 8
  Maximum simultaneous playback tracks: 6
  Recording formats: WAV
  44.1/48/96/192 kHz,
  16-bit/24-bit/32-bit float
  mono/stereo
  BWF and iXML formats supported
  Recording media
  microSDHC memory cards
  microSDXC memory cards
  DISPLAY
  2.00" full-color LCD: 320 x 240
  USB
  Connector
  USB Type-C
  • Use a USB cable that supports data transfer.
  Audio Interface, USB 2.0 High Speed
  Input and output channels
  6 in / 2 out (Multi)
  2 in / 2 out (Stereo)
  Sampling frequencies
  44.1/48/96 kHz (audio interface only)
  44.1/48 kHz (audio interface + onboard recording)
  Bit depths: 24-bit, 32-bit float
  File transfer: USB 2.0 High Speed
  REMOTE
  Dedicated wireless adapter: ZOOM BTA-1
  POWER

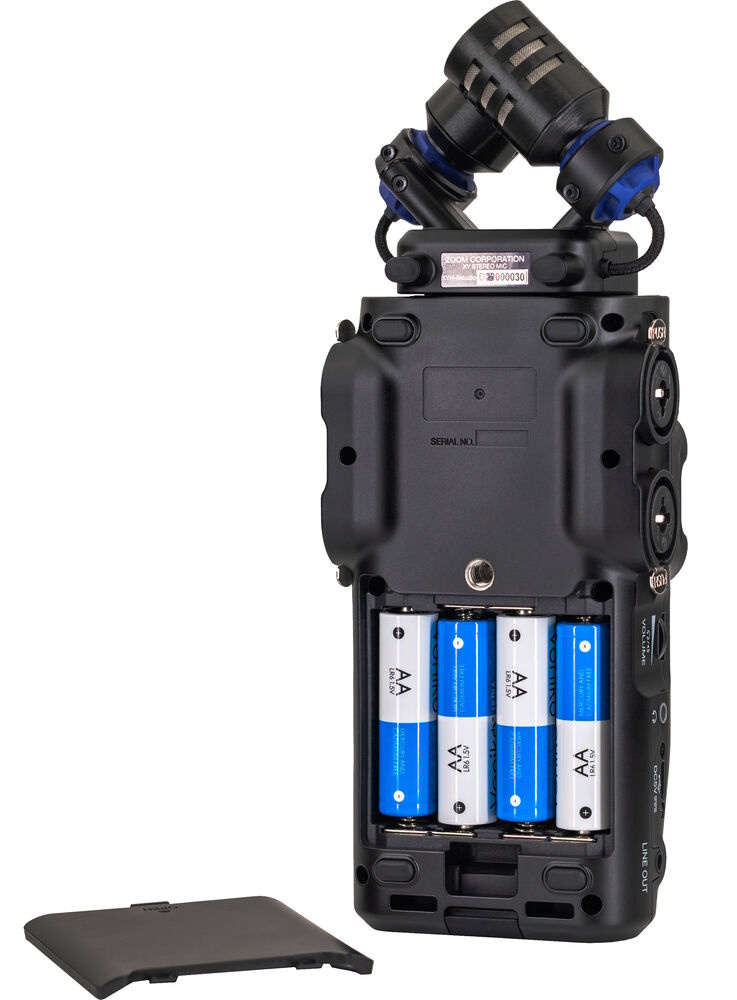

  4 AA batteries: Alkaline, lithium or rechargeable NiMH batteries
  AC Adapter: ZOOM AD-17 (DC 5 V/1 A)
  • USB bus power is supported.
